Product Description

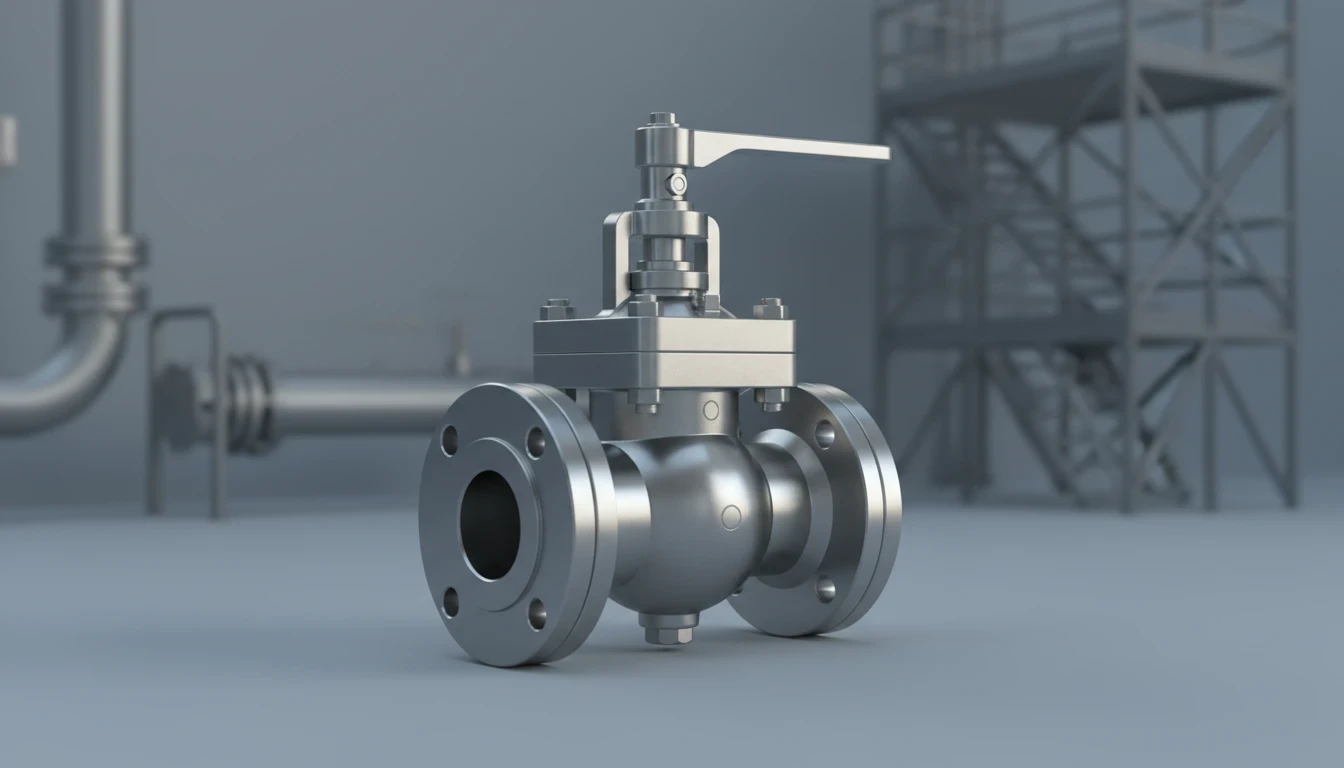

AGB's Trunnion Mounted Ball Valves (Series BV) are specifically engineered for the most demanding isolation services in the energy industry. The side-entry, three-piece split body design allows in-line maintenance without removing the valve from the pipeline, reducing downtime and total cost of ownership.
The trunnion support of the ball transfers pipeline loads directly to the valve body rather than the seats, enabling significantly lower operating torques and dramatically reduced seat wear — extending service life well beyond conventional floating ball designs. Spring-loaded seats maintain a positive seal at all pressures, including low-pressure conditions where seat contact force would otherwise be insufficient.
Available in full-bore and reduced-bore configurations, the BV series accommodates pigging operations and meets the most stringent fugitive emission requirements per ISO 15848-1 Class B. All valves are factory-tested to API 598 before shipment.
Double Block & Bleed
Simultaneous isolation of upstream and downstream pressures with cavity bleed capability.
Anti-Static Design
Spring-loaded plunger ensures electrical continuity between ball, stem, and body.
Emergency Sealant Injection
Standard fittings for stem and seat emergency sealant injection to prevent leaks.
Blow-out Proof Stem
T-type stem design prevents stem ejection under internal pressure per API 6D.
Full Technical Specifications
| Product Number | AGB-BV-001 |
| Series | BV — Trunnion Mounted Ball Valve |
| Size Range | 2" – 48" (DN50 – DN1200) |
| Pressure Class | ASME 150 – 2500 (PN 20 – PN 420) |
| Temperature Range | -196°C to +550°C (-321°F to +1022°F) |
| Bore Type | Full bore & reduced bore available |
| Face to Face | ASME B16.10 / API 6D |
| End Connection | Flanged RF/RTJ, Butt Weld, Ring Type Joint |
| Body Materials | WCB, LCB, CF8, CF8M, Duplex SS, Inconel 625 |
| Seating Material | PTFE, Devlon V, PEEK, Metal-to-Metal (Stellite) |
| Stem Seal | Live-loaded PTFE / Graphite packing |
| Operation | Manual (lever/gear), Pneumatic, Hydraulic, Electric |
| Design Standard | API 6D, API 6A, ISO 14313, ASME B16.34 |
| Fire Safe | API 607 / API 6FA certified |
| Fugitive Emissions | ISO 15848-1 Class B / TA-Luft compliant |
| Sour Service | NACE MR0175 / ISO 15156 compliant |
| Factory Test | API 598 shell, seat & backseat test |
Lead Time: Standard configurations 8–12 weeks. Special alloys or large bore (>24") 14–20 weeks. Contact our engineering team for project-specific scheduling.
Common Applications

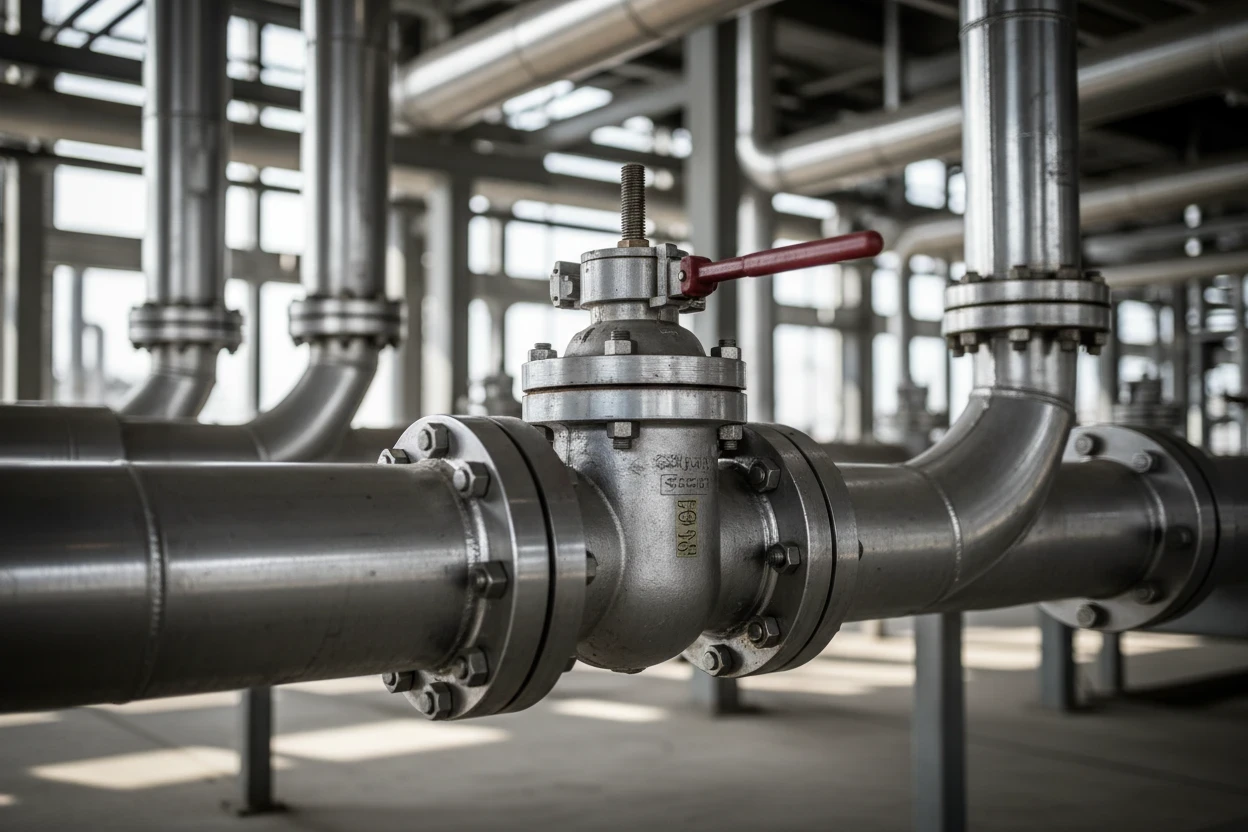

Oil & Gas Pipelines
Long-distance transmission lines requiring high-integrity isolation.

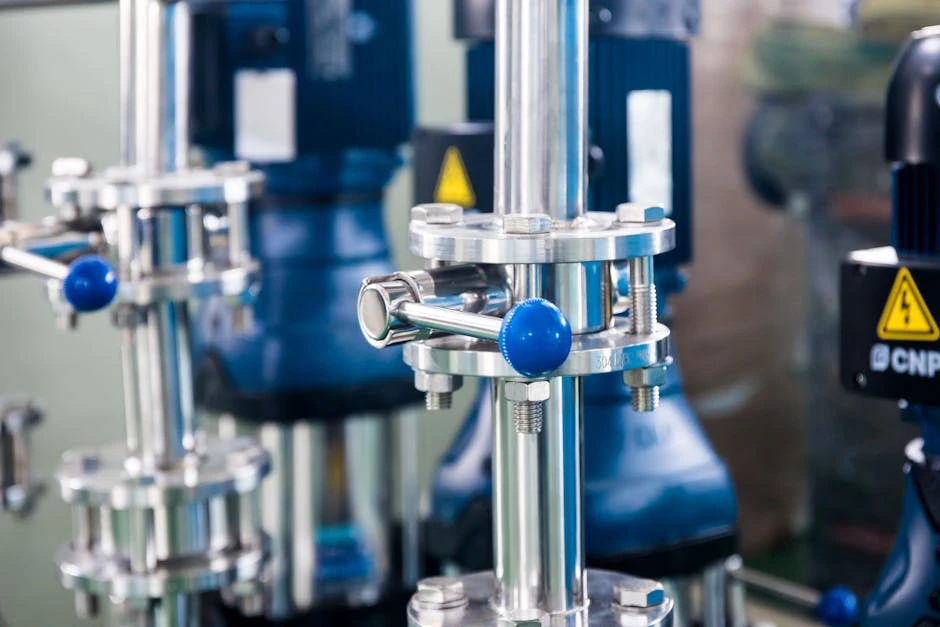

LNG Processing
Cryogenic configurations for liquefied natural gas storage and transit.

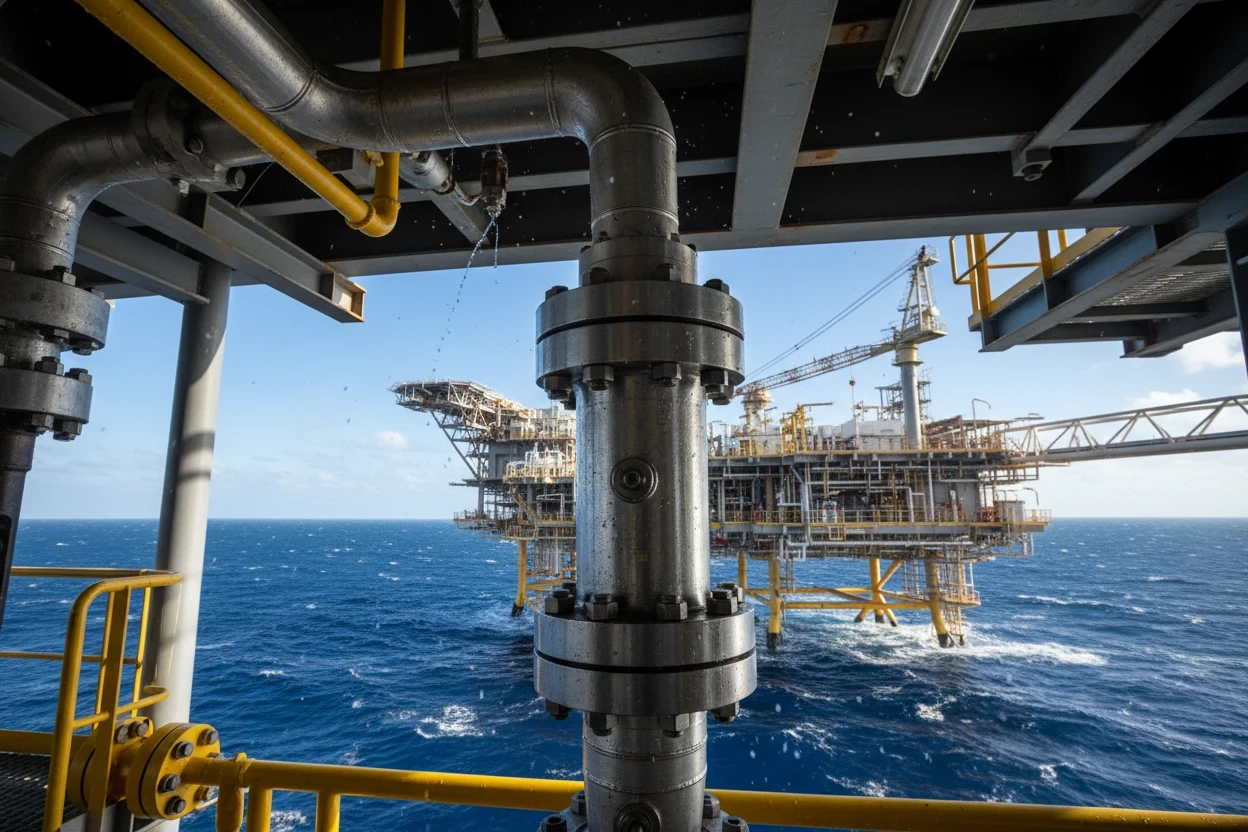

Offshore Platforms
Corrosion-resistant materials for harsh maritime environments.
